Great lighting means a safer environment. ThinkLite LED improves light levels by 20%, cuts lighting costs by 60-70% while improving overall operational efficiency.

LED Tubes
LED Pod

ThinkLite LED Tubes

	Fluorescent T12, T8 and T5 Tubes	ThinkLite LED T12, T8 and T5 Tubes
Technology	Fluorescent technology	ThinkLite Driverless LED Technology
Wattage	-	40-60% less than fluorescent
Average Lifespan	18,000 hours	70,000 hours
Lumen Depreciation and Color Loss	40% over lifetime	5% over lifetime
Instant On/Off (Motion Sensor)	Yes- Reduces lifespan of ballast	Yes- does not affect lifespan
Color Rendering Index (CRI)	78	93
Additional Details	-	Available in all sizes from 2 ft to 8 ft Matches color and brightness of a brand new fluorescent

Thinklite driverless LED tubes are perfect for Industrial use
T8 and T5 retrofits available
Fit into any existing fluorescent fixture
Available in various shapes and sizes (including U-Shape, 4ft, 8ft and more)
Highest lumens per watt in industry (180lumens/watt)
70,000 lifespan (20,000 more compared to competitors)
Made with shatterproof lenses
Produces 90% less heat than any other LED tube in the market
Patented heat sink design dissipates heat 70% more efficiently

ThinkLite LED POD

	Metal Halide	ThinkLite LED Pod
Technology	HID	ThinkLite LED
Wattage	Varies	60% less than metal halide
Average Lifespan	20,000 hours	50,000 hours
Lumen depreciation	40% over lifetime	5% over lifetime
Sharpness of Light (CRI)	85	93
Instant on/off
Adjustable beam angle
Additional Details	None	1-for-1 direct replacement for HID lamp and ballast Even distribution of light
Light Efficiency (Coefficient of Utilization)

Customizable brackets included with each unit to help them fit in almost any size fixture

IP65 rated allowing for optimal use in day courts, pool areas and other areas with high moisture, humidity, dust or smoke.
5 year warranty

Custom beam angle lens allows adjustment of light based on layout, celling height and preference

ThinkLite Degree Smart System: inbuilt temperature sensing hardware that is constantly monitoring the temperature of the LED and the PCB, and controlling the fan operation to ensure optimal performance.

Lenses are made with industrial grade polycarbonate for maximum durability

ThinkLite StayCool System

The ThinkLite StayCool system keeps track of temperature constantly. If the temperature rises above 80F, the LEDs will switch off while the fans remain on until the system is cool again.

Frictionless Sunon fan(s) with silicon pads to minimize noise. IP65 rated.

The fans will keep the entire system cool even in an enclosed fixture. The fans are designed to cool the air surrounding the pod especially in an enclosed fixture.

3mm thick copper based PCB board keeps temperature of the LED chips low. Copper is 4x more effective than silicon, which is typically used, at keeping that temperature low.

Proprietary aluminum based heat sink designed with maximum surface area for optimal heat dissipation.

ThinkLite was very thorough in their data collection process, and showed us a highly detailed analysis of the savings by location.
Our light levels in the warehouse and manufacturing space have increased significantly; and we are saving even more than expected!
We shopped through various lighting companies, and it was only ThinkLite that we came across, who could help us implement a lighting upgrade for such a large facility with such a quick ROI.

Pennsylvania Transformers Technology Inc.

ThinkLite LED lamps will not interfere with electronics, wireless signals or machinery in any setting.

ThinkLite LED lamps produce an even distribution of light, so that the entire area is illuminated, not just the floor. This makes it easier, for instance, for carton or container labels to be read, even those on the highest shelves.

ThinkLite LED lamps have best in class CRI (color rating index), improving visibility in the aisles even at high ceiling heights. High quality lighting can prevent accidents and improve safety.

All ThinkLite LEDs are mercury free and are designed with shatterproof polycarbonate covers instead of glass. They are ideal for facilities that contain food, medicine, and other FDA regulated items. ThinkLite induction lamps are mercury-safe.

ThinkLite lamps are safer to use than metal halides, which radiate a high concentration of UV rays which can be harmful with extended exposure.

ThinkLite lamps are built to optimally operate from -30F to 160F offering a broad variety of applications; and the highest operating temperature range in the LED industry today.

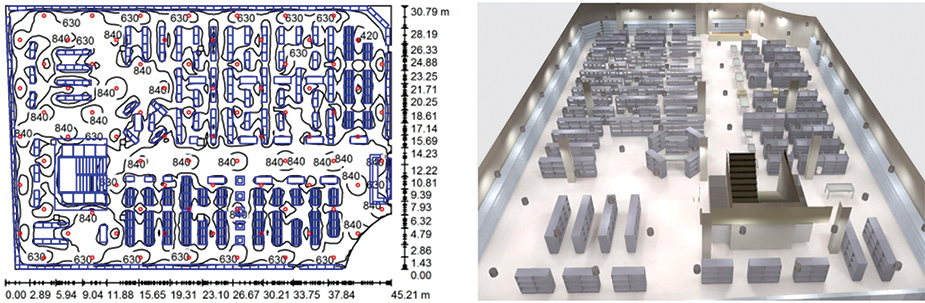

Lighting Simulation

ThinkLite can create a point-to-point simulation of any industrial space to optimize the light levels necessary in the facility.
ThinkLite will recommend the optimal layout and wattage for any space using DIALUX to simulate light levels.
These tools ensure maximum savings and perfect light quality, tailored to each facility.

Controls

ThinkLite lamps have the ability to be switched on and off instantly, without affecting their lifespans unlike fluorescent and metal halide lamps, thus allowing the introduction of motion sensors and/or timers.
Dimming options include TRIAC and 0-10V Lutron. These options are commonly used in conjunction with motion sensors to optimize savings.
Backup power supply keeps lights on for up to three hours in case of power failure.
