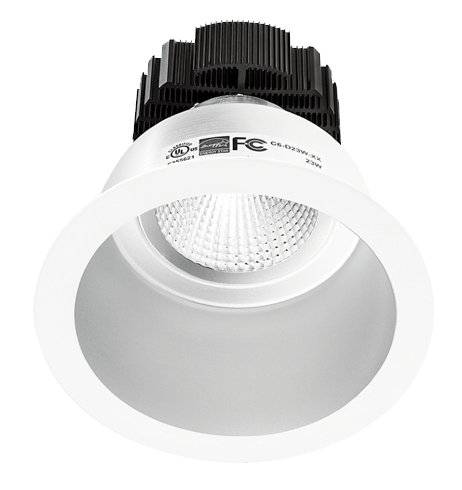

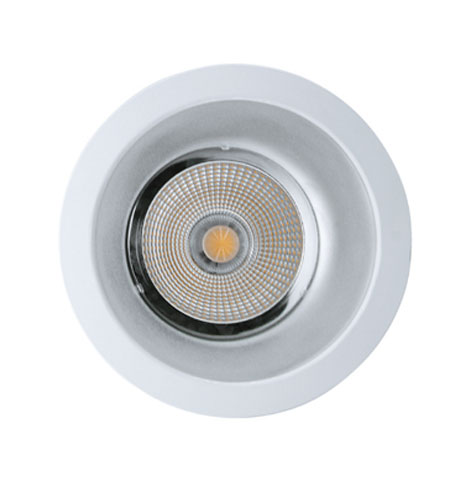

TL LED Downlight
ThinkLite LED downlight is a direct replacement for halogen and fluorescent recessed cans. ThinkLite produces the industry’s highest efficacy of 180 lm/W and a CRI of 93. This yields a highly efficient and superior light quality for offices, hotels, university campuses, hospitals, fitness centers and even outdoor areas. All models can come in dimming options (0-10V or TRIAC), optimized for wireless controls.
- Reduced energy consumption by 70%
- Vibration and impact resistant
- Longer lifespan (70,000 hours), last 3x longer than fluorescent
- 7 year warranty
- IP65
- Instant on/off
- One to one replacement for fluorescent PL fixture cans
- Available in 4″,6″,8″ and 10″ cans
- 0-10V or TRIAC Dimmable
| Input Voltage | Input Frequency | Lumen Efficacy | Visible Factor |
|---|---|---|---|
| 85 - 277V | 50Hz - 60Hz | 180 LM/W | 1.5X |
| Power Factor | Working Environment | Kelvin Options | Beam Angles |
| >0.99 | Indoor | 2100K - 7000K | 120° - 270° |
| CRI | Lumen Depreciation | Operating Temperature | Lens Cover |
| 93+ | 5% at 70,000 hours | -30°F to 160°F | Opaque |
| Mounting Technique | Sensors | - | - |
| Recessed | Photo Sensor Compatible, Motion Sensor Compatible |
- | - |
| 4" Inch | 11W: 1,980 Lumens | 15W: 2,700 Lumens | 20W: 3,600 Lumens | - |
|---|---|---|---|---|
| 6" Inch | 11W: 1,980 Lumens | 15W: 2,700 Lumens | 20W: 3,600 Lumens | 25W: 4,500 Lumens |
| 30W: 5,460 Lumens | - | - | - | |
| 8" Inch | 11W: 1,980 Lumens | 15W: 2,700 Lumens | 20W: 3,600 Lumens | 25W: 4,500 Lumens |
| 30W: 5,460 Lumens | 35W: 6,300 Lumens | 40W: 7,200 Lumens | - | |
| 10" Inch | 20W: 3,600 Lumens | 25W: 4,500 Lumens | 30W: 5,460 Lumens | 35W: 6,300 Lumens |
| 40W: 7,200 Lumens | 50W: 9,000 Lumens | - | - |
