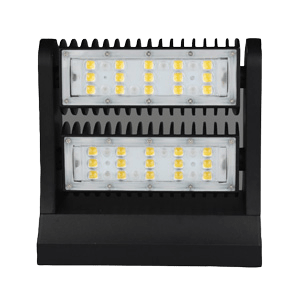

LED Rotating Wall Pack
The ThinkLite LED Rotating Wall Pack Fixture is the only one the industry designed to flexibly provide lighting upwards, downwards or both on a wall mount. This product is a 2 in 1 unit that allows architects and contractors to easily spec out lighting for wall surfaces, and not having to worry about the direction of light, until during the time of install.
The most popular configuration is the up and down light setting, allowing for the upper walls of a building to be lit up, as well as the bottom area for general safety.
This design works well for both indoor and outdoor perimeter lighting, general area lighting and sports lighting.
All models come in 0-10V dimming by default, optimized for wireless controls.
- Reduced energy consumption by 70%
- Vibration and impact resistant
- Longer lifespan (70,000 hours) / 10 year warranty
- IP67 Rated
- No harmful UV rays
- Instant on / off
- One to one replacement for metal halide
- Integrated Motion/Photo Sensor (optional)
- 0-10V Dimmable
|Input Voltage||Input Frequency||Lumen Efficacy||Visible Factor|
|85 - 277V||50Hz - 60Hz||160 LM/W||1.5X|
|Power Factor||Working Environment||Sensor||Kelvin Options|
|>0.99||Indoor/Outdoor||Photo and Motion
|2100K - 7000K|
|Beam Angles||CRI||Lumen Depreciation||Operating Temperature|
|120° - 270°||93+||5% at 70,000 hours||-30°F to 170°F|
|Lens Cover||Mounting Options||Available Colors||-|
|25W||4,000||L9.67” x W5.67” x D5.20”|
|40W||6,400||L9.67” x W5.67” x D5.20”|
|60W||9,600||L9.13” x W8.85” x D5.20”|
|80W||12,800||L9.13” x W8.85” x D5.20”|
