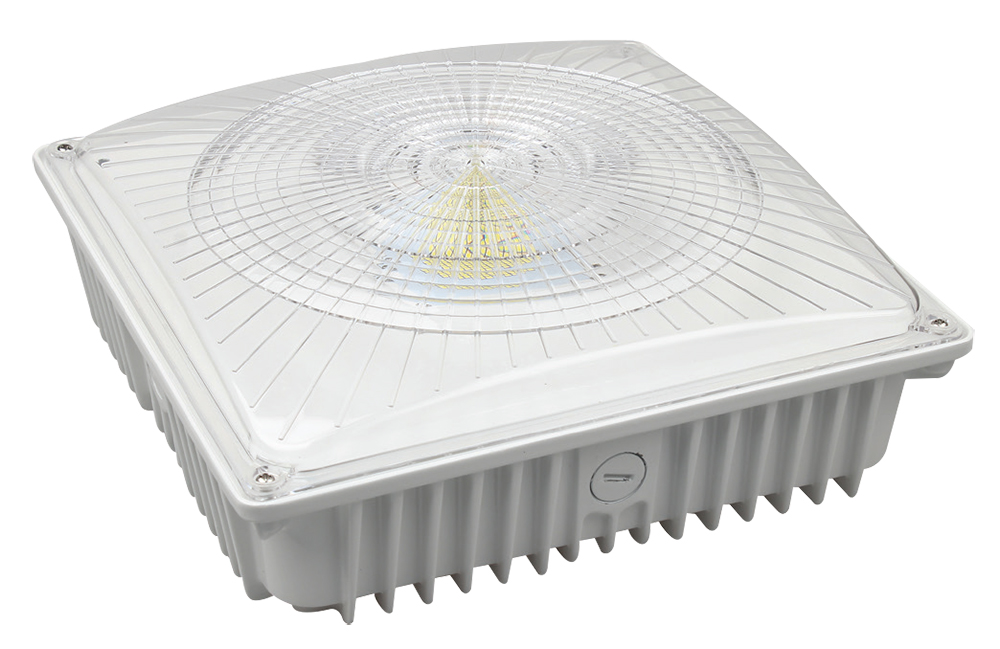

LED Canopy
The ThinkLite LED Canopy Fixture is the only on the industry designed to provide uplight and downlight. The uplight is a safety and aesthetic feature designed to light up the ceiling areas of parking garages and gas stations with just the right amount of light.
This is proven to primarily maximize safety in parking garages as it helps the driver’s eyes to comfortably adjust when entering a garage during the day. ThinkLite Canopy Fixtures have anti glare technology lenses, to ensure safe and uniform lighting for drivers and pedestrians. All models come in 0-10V dimming by default, optimized for wireless controls.
- Reduced energy consumption by 70%
- Vibration and impact resistant
- Longer lifespan (70,000 hours) / 10 year warranty
- IP66 Rated
- No harmful UV rays
- Instant on / off
- One to one replacement for metal halide
- Integrated Motion/Photo Sensor (optional)
- 0-10V Dimmable
Input Voltage | Input Frequency | Lumen Efficacy | Visible Factor |
---|---|---|---|
85 - 277V | 50Hz - 60Hz | 160 LM/W | 1.5X |
Power Factor | Working Environment | Sensor | Kelvin Options |
>0.99 | Indoor/Outdoor | Photo and Motion Sensor compatible | 2100K - 7000K |
Beam Angles | CRI | Lumen Depreciation | Operating Temperature |
120° - 270° | 93+ | 5% at 70,000 hours | -30°F to 170°F |
Lens Cover | Mounting Options | - | - |
Opaque | Surface Mount, Recessed, Pole Mount | - | - |
35W: 5,600 Lumens | 55W: 8,800 Lumens | 75W: 12,000 Lumens | 100W: 16,000 Lumens |
